Scherrer - Thermal Oil Heater

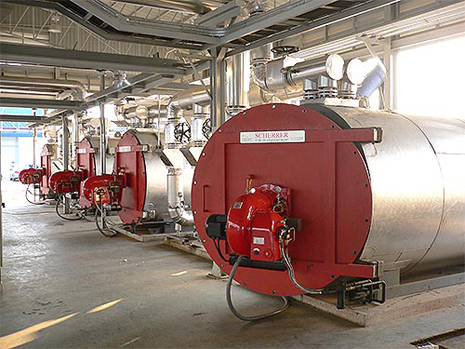

Advantages of Thermal oil Plant

  • Operation nearly pressureless
  • Safety in operation
  • Reasonable installation costs (low pressure system)
  • No corrosion
  • Frost resistant (up to -30 degrees C)
  • Exact temperature control
  • Fully automatic operation
  • Without water treatment (thermooil can be used for years)
  • Possibility of indirect hot water and steam generation


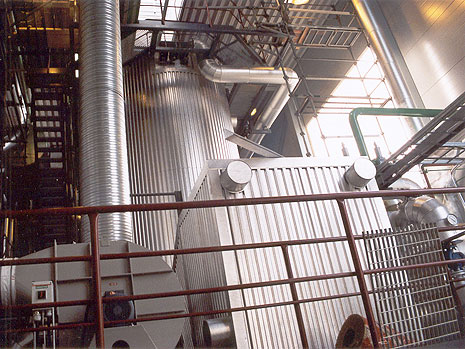

Applications

  • Construction material industry for heating of form works, brick works dry chambers
  • Tar manufacturing industry for roofing felt plants, store and mixing installations, tank depots
  • Chemical industry for autoclaves, reaction tanks, mixing plants
  • Wood-, paper-, pasteboard industry for laminate presses, hot presses, chip board presses, dryers
  • Plastic industry for extruders, calanders, melting vessels, polymerisation plants
  • Metal-processing industry for pickling baths, varnishing plants, degreasing systems
  • Food industry for baking plants, distilling, fat-splitting, pasteurising
  • Soap and detergent industry for autoclaves, spray and drying columns, soaping plants
  • Textile industry for coating, colouring plants, calanders, stenters, dryers, hot flues
  • Combustion chamber The cylindrical combustion chamber is constructed according to the flame geometry. This guarantees an optimal combustion and a low load of the heating surface.
  • Flue gas direction In the well tested three-pass-principle the flue gas flows from the combustion chamber to the space between radiate and convection tube bundle, than through the 3rd pass between the outside tube bundle and the boiler shell to the chimney.
  • Flue gas direction In the well tested three-pass-principle the flue gas flows from the combustion chamber to the space between radiate and convection tube bundle, than through the 3rd pass between the outside tube bundle and the boiler shell to the chimney.
  • Insulation For heat insulation the boiler is covered allover by special insulation wool mats. Total 150 mm seam displaced fixed in two layers guarantees an optimum protection against heat loss. The top layer is made of aluminium sheet.


Construction

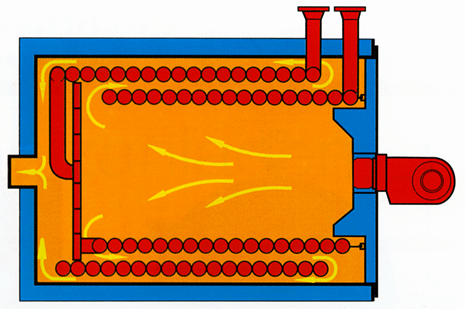

  • Heating surface Radiate and convection heating surfaces consist of precisely manufactured cylindrical tube bundles, connected together to a reversing chamber, which is entirely cooled by thermooil.
  • Combustion chamber The cylindrical combustion chamber is constructed according to the flame geometry. This guarantees an optimal combustion and a low load of the heating surface.
  • Flue gas direction In the well tested three-pass-principle the flue gas flows from the combustion chamber to the space between radiate and convection tube bundle, than through the 3rd pass between the outside tube bundle and the boiler shell to the chimney.
  • Insulation For heat insulation the boiler is covered allover by special insulation wool mats. Total 150 mm seam displaced fixed in two layers guarantees an optimum protection against heat loss. The top layer is made of aluminium sheet.


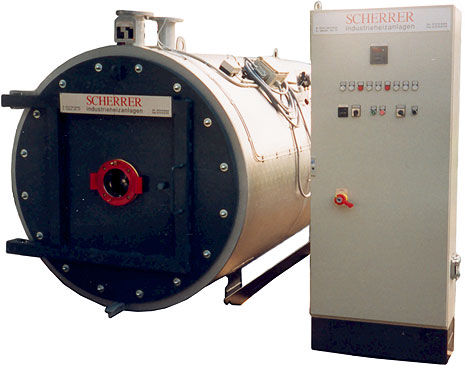

Quality Marks

  • High efficiency combustion (up to 88 %)
  • Exact temperature control
  • No local over heat
  • Precisely manufactured tube bundles
  • Minimal heat loss because of high effective insulation
  • Rear partition of combustion chamber is entirely cooled by thermooil, thereby no tension cracks of refractories.
  • Front door on hinges (type CH), resp. removable top plate (type CV), thereby easy possibility of cleaning to preserve the high efficiency.
  • All control cables are ready-wired by plugs to avoid wiring faults at site.

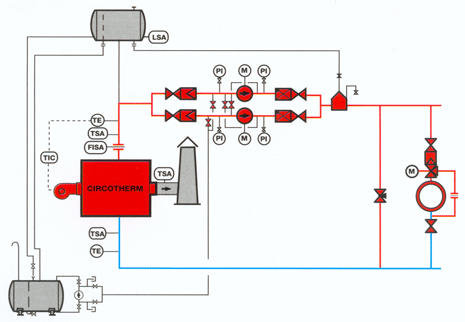

Safety

  • Cold start thermostat reduces burner capacity until the minimum viscosity of thermooil is being reached.
  • Combustion is blocked until the pump is running properly.
  • Flow monitoring by type-tested differential pressure system.
  • If the minimum flow falls short the burner stops at once.
  • Safety thermostat controls max. supply temperature and stops the burner in case of overheating.
  • Flue gas thermostat switches off the burner if the allowed temperature will be exceeded.
  • All safety appliances in addition give optical and acoustic alarm. The source of error is shown at the control cabinet.
  • All appreciated safety devices are type-tested according to German Standard DIN 4754 and VDI 3033.
